Stallion :

We are Ahmedabad (Guj.-INDIA) based ISO 9001 : 2015 and CE approved “Manufacturing Company” And Serve in market since 20 Years

We are operate in market with “Stallion”  brand

Product :

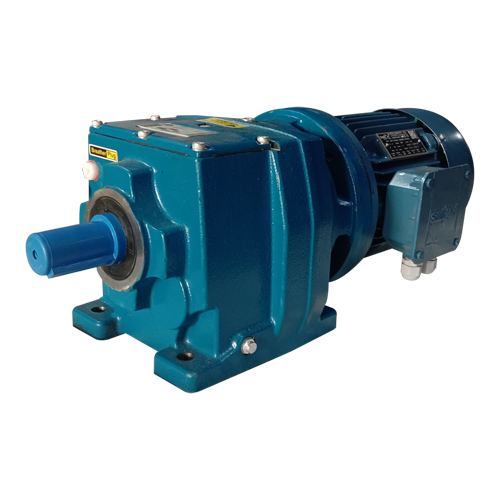

These “Electric Gear Motors” are mainly combination of Gear & Motor, These are inbuilt with Gear Box

This dual functionality motors are widely used in the all type of industries & market, Which is needed geared operation in their operational cycle

Specifically designed for crane & hoist gear operation with robust in frequent starts/stops and reversals continuous with 60 Starts/Hr. to 300 Starts/Hr.

Application :

• Ideally suitable for short time and intermittent duties
• Widely use in Crane & Hoist application including LT & CT as well as Material Handling, Weirs & Sluices, Lift, Auxiliary in Rolling Mills, Etc.
• All Type of Micro, Small, Medium, Heavy And Large Scale of Industries

Frame & Range :

• Frame : 63 to 280 S
• KW/HP Range : 0.18 to 90 KW / 0.25 to 120 HP

Operating Conditions :

• Voltage : 415 V +/- 10% (Provided in 220/230/380/460/525 V on request)
• Frequency : 50 Hz +/- 5%
• Combined Variation : +/- 10%

Duty :

• Ideally suitable for all types of duties such as...S1 to S8

IS Standards :

• IS : 1231 for Foot Mounting
• IS : 2223 for Flange Mounting
• IS : 325 for 3-Ph. Ind. Motors Specs.
• IS 12615 : 2018 for Line Operated Three Phase A.C. Motors
• IEC 60034 - 1 for Rotating Electrical Machines – Rating & Performance

Protection :

• Ingress Protection is IP-44

Enclosure :

• Totally Enclosed Fan Cooled

Construction Range :

• Horizontal Mounting as B3, B5, B3 with B5, B6, B7, B8, B14, B3 with B14
• Vertical Mounting as V1, V3, V5, V6, V18, V19

Construction :

• Cast Iron Body, No-Bake Casting Body, Aluminum Pressure Die Casting Body

Material :

• Stator Winding : Modified Polyster Enamel Cover Cu.
• Stator Winding Insulation : Class-F with temperature rise as Class-B
• Rotor Winding : Pressure die-cast aluminum
• Stamping : CRNO
• Bearing : ZZ Sealed
• Shaft : EN-8 C40 Steel

Paint :

• Shade : In Standardized Graphite Grey is Stallion Brand Color (Customized on request)
• Type : Auto grade synthetic (Provided Acrylic Base on request)

Key Way & Balancing :

• Key-Way have a precise tolerance work And Rotors are dynamically balanced with a using of our inhouse key-way & balancing line set up

Features :

• Increased air gap between stator and rotor as special designed rotor
• Specially designed for Hoisting, CT & LT
• Suitable for All Type of Brake
• Robustly constructed & Durability as high as used material’s applicable grade & quality
• Electrically & Mechanically efficient throughout the motor's life-span with fulfills of IS Standard
• Excellent in Load Inertia Vs Motor Speed
• Less power consumption from IE1 to IE2, IE2 to IE3, Etc.
• Economical models to reduce cost of product
• Can customize for specific hoisting speed as well as combined operation of TEFC & Brake

Request
Callback

Additional Information:

• Item Code: STL94
• Production Capacity: 500 Piece Per Month
• Delivery Time: As Per Customer Requirement / Ready To Stock
• Packaging Details: As Stallion Standardized PVC Wrapping (Wooden Box / Metal Box / Thermocol-Corrugated Box Are available on request)

Stallion :

We are Ahmedabad (Guj.-INDIA) based ISO 9001 : 2015 and CE approved “Manufacturing Company” And Serve in market since 20 Years

We are operate in market with “Stallion”  brand

Product :

These “Geared Motors” are mainly combination of Gear & Motor, These are inbuilt with Gear Box

This dual functionality motors are widely used in the all type of industries & market, Which is needed geared operation in their operational cycle

Specifically designed for crane & hoist gear operation with robust in frequent starts/stops and reversals continuous with 60 Starts/Hr. to 300 Starts/Hr.

Application :

• Ideally suitable for short time and intermittent duties
• Widely use in Crane & Hoist application including LT & CT as well as Material Handling, Weirs & Sluices, Lift, Auxiliary in Rolling Mills, Etc.
• All Type of Micro, Small, Medium, Heavy And Large Scale of Industries

Frame & Range :

• Frame : 63 to 280 S
• KW/HP Range : 0.18 to 90 KW / 0.25 to 120 HP

Operating Conditions :

• Voltage : 415 V +/- 10% (Provided in 220/230/380/460/525 V on request)
• Frequency : 50 Hz +/- 5%
• Combined Variation : +/- 10%

Duty :

• Ideally suitable for all types of duties such as...S1 to S8

IS Standards :

• IS : 1231 for Foot Mounting
• IS : 2223 for Flange Mounting
• IS : 325 for 3-Ph. Ind. Motors Specs.
• IS 12615 : 2018 for Line Operated Three Phase A.C. Motors
• IEC 60034 - 1 for Rotating Electrical Machines – Rating & Performance

Protection :

• Ingress Protection is IP-44

Enclosure :

• Totally Enclosed Fan Cooled

Construction Range :

• Horizontal Mounting as B3, B5, B3 with B5, B6, B7, B8, B14, B3 with B14
• Vertical Mounting as V1, V3, V5, V6, V18, V19

Construction :

• Cast Iron Body, No-Bake Casting Body, Aluminum Pressure Die Casting Body

Material :

• Stator Winding : Modified Polyster Enamel Cover Cu.
• Stator Winding Insulation : Class-F with temperature rise as Class-B
• Rotor Winding : Pressure die-cast aluminum
• Stamping : CRNO
• Bearing : ZZ Sealed
• Shaft : EN-8 C40 Steel

Paint :

• Shade : In Standardized Graphite Grey is Stallion Brand Color (Customized on request)
• Type : Auto grade synthetic (Provided Acrylic Base on request)

Key Way & Balancing :

• Key-Way have a precise tolerance work And Rotors are dynamically balanced with a using of our inhouse key-way & balancing line set up

Features :

• Increased air gap between stator and rotor as special designed rotor
• Specially designed for Hoisting, CT & LT
• Suitable for All Type of Brake
• Robustly constructed & Durability as high as used material’s applicable grade & quality
• Electrically & Mechanically efficient throughout the motor's life-span with fulfills of IS Standard
• Excellent in Load Inertia Vs Motor Speed
• Less power consumption from IE1 to IE2, IE2 to IE3, Etc.
• Economical models to reduce cost of product
• Can customize for specific hoisting speed as well as combined operation of TEFC & Brake

Request
Callback

Additional Information:

• Item Code: STL92
• Production Capacity: 500 Piece Per Month
• Delivery Time: As Per Customer Requirement / Ready To Stock
• Packaging Details: As Stallion Standardized PVC Wrapping (Wooden Box / Metal Box / Thermocol-Corrugated Box Are available on request)

Stallion :

We are Ahmedabad (Guj.-INDIA) based ISO 9001 : 2015 and CE approved “Manufacturing Company” And Serve in market since 20 Years

We are operate in market with “Stallion”  brand

Product :

These “Worm Geared Motors” are mainly combination of Gear & Motor, These are inbuilt with Gear Box

This dual functionality motors are widely used in the all type of industries & market, Which is needed geared operation in their operational cycle

Specifically designed for crane & hoist gear operation with robust in frequent starts/stops and reversals continuous with 60 Starts/Hr. to 300 Starts/Hr.

Application :

• Ideally suitable for short time and intermittent duties
• Widely use in Crane & Hoist application including LT & CT as well as Material Handling, Weirs & Sluices, Lift, Auxiliary in Rolling Mills, Etc.
• All Type of Micro, Small, Medium, Heavy And Large Scale of Industries

Frame & Range :

• Frame : 63 to 280 S
• KW/HP Range : 0.18 to 90 KW / 0.25 to 120 HP

Operating Conditions :

• Voltage : 415 V +/- 10% (Provided in 220/230/380/460/525 V on request)
• Frequency : 50 Hz +/- 5%
• Combined Variation : +/- 10%

Duty :

• Ideally suitable for all types of duties such as...S1 to S8

IS Standards :

• IS : 1231 for Foot Mounting
• IS : 2223 for Flange Mounting
• IS : 325 for 3-Ph. Ind. Motors Specs.
• IS 12615 : 2018 for Line Operated Three Phase A.C. Motors
• IEC 60034 - 1 for Rotating Electrical Machines – Rating & Performance

Protection :

• Ingress Protection is IP-44

Enclosure :

• Totally Enclosed Fan Cooled

Construction Range :

• Horizontal Mounting as B3, B5, B3 with B5, B6, B7, B8, B14, B3 with B14
• Vertical Mounting as V1, V3, V5, V6, V18, V19

Construction :

• Cast Iron Body, No-Bake Casting Body, Aluminum Pressure Die Casting Body

Material :

• Stator Winding : Modified Polyster Enamel Cover Cu.
• Stator Winding Insulation : Class-F with temperature rise as Class-B
• Rotor Winding : Pressure die-cast aluminum
• Stamping : CRNO
• Bearing : ZZ Sealed
• Shaft : EN-8 C40 Steel

Paint :

• Shade : In Standardized Graphite Grey is Stallion Brand Color (Customized on request)
• Type : Auto grade synthetic (Provided Acrylic Base on request)

Key Way & Balancing :

• Key-Way have a precise tolerance work And Rotors are dynamically balanced with a using of our inhouse key-way & balancing line set up

Features :

• Increased air gap between stator and rotor as special designed rotor
• Specially designed for Hoisting, CT & LT
• Suitable for All Type of Brake
• Robustly constructed & Durability as high as used material’s applicable grade & quality
• Electrically & Mechanically efficient throughout the motor's life-span with fulfills of IS Standard
• Excellent in Load Inertia Vs Motor Speed
• Less power consumption from IE1 to IE2, IE2 to IE3, Etc.
• Economical models to reduce cost of product
• Can customize for specific hoisting speed as well as combined operation of TEFC & Brake

Request
Callback

Additional Information:

• Item Code: STL93
• Production Capacity: 500 Piece Per Month
• Delivery Time: As Per Customer Requirement / Ready To Stock
• Packaging Details: As Stallion Standardized PVC Wrapping (Wooden Box / Metal Box / Thermocol-Corrugated Box Are available on request)

Brand Stallion : We are operate in market with "Stallion" Brand
We are known for "Prime Manufacturers" of the widest range serve in market As,MTR-Products : 3-Phase Electric Motor as Brake Motor, AC Brake Motor, DC Brake Motor, Industrial Brake Motor, Geared Brake Motor, Crane Duty Motor, Hoist Duty Motor, Hollow Shaft Motor, Double Shaft Motor, Induction Motor, Squirrel Cage Indu. MotorBRK-Products : AC Brake, Electromagnetic Brake, AC Electromagnetic Brake, Spring Loaded Failsafe Brake, DC Brake, Thruster Brake, Shoe Brake
SSR-Products : Solid State Rectifier, DC Rectifier, DC Brake Rectifier, Half-Wave Rectifier, Full-Wave Rectifier, Voltage Vary Rectifier

We are also known for our "Prime Trading Business" And It have started to given "One Stop Solution to Our Valuable Customer" with product portfolio As,WRS-Products : Authorised dealer of Wire Rope of Usha Martin & Bed Mutha, Hook, Hook Assembly, Hoist-Pulley Assembly, Sling, Push-Button Station, Etc.

Gear motors are electric motors integrated with a gearbox (gear reduction unit) to achieve specific speed, torque, and mechanical advantage requirements for various applications. The gearbox reduces the motor's high-speed, low-torque output to a lower-speed, higher-torque output that suits the application's needs. There are several types of gear motors, each designed for different purposes. Here are some common types :

1. Helical Gear Motor :

   1. Helical gear motors have helical teeth that run at an angle to the gear's axis. They offer smooth and quiet operation with high efficiency, making them suitable for various industrial applications.

2. Planetary Gear Motor :

   1. Planetary gear motors consist of a central sun gear, planet gears that rotate around the sun gear, and an outer ring gear. They provide high torque density and compactness, making them ideal for applications with space constraints

3. Spur Gear Motor :

   1. Spur gear motors have straight teeth that run parallel to the gear axis. They are simple and cost-effective but may produce more noise and vibration compared to other gear types.

4. Worm Gear Motor :

   1. Worm gear motors use a worm (screw) and worm wheel to achieve gear reduction. They offer high torque output and are commonly used for heavy-load applications.

5. Bevel Gear Motor :

   1. Bevel gear motors have beveled teeth that allow power transmission between non-parallel shafts. They are often used in applications where the input and output shafts are not aligned.

6. Hypoid Gear Motor :

   1. Hypoid gear motors combine features of spiral bevel and worm gear designs. They offer higher torque capacity and efficiency compared to worm gears.

7. Cycloidal Gear Motor :

   1. Cycloidal gear motors use a set of lobed or cam-shaped gears to achieve gear reduction. They provide high torque and shock resistance, making them suitable for rugged applications.

8. Harmonic Drive Gear Motor :

   1. Harmonic drive gear motors use flexible components to achieve high reduction ratios. They are known for precision and accuracy in applications such as robotics and precision machinery.

9. Right Angle Gear Motor :

   1. Right angle gear motors have an output shaft at a 90-degree angle to the motor's input shaft. They are useful for transmitting power around corners or in confined spaces.

10. Parallel Shaft Gear Motor :

    1. Parallel shaft gear motors have input and output shafts that are parallel to each other. They are versatile and used in various applications.

Each type of gear motor has its own advantages and disadvantages, making them suitable for specific applications based on factors such as torque requirements, space constraints, efficiency, noise levels, and precision. The choice of gear motor depends on the specific needs of the application and the desired performance characteristics.
