Brake Motors
Total 9 items found in Brake Motors

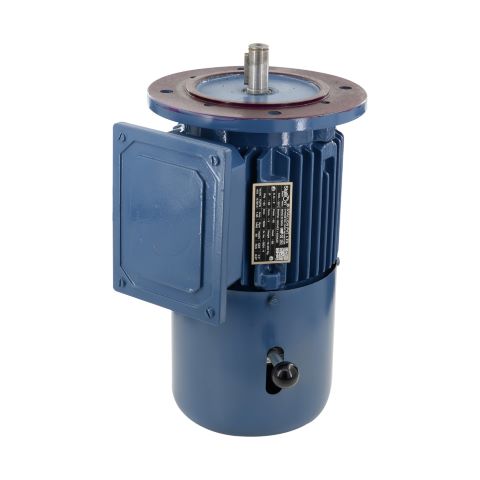

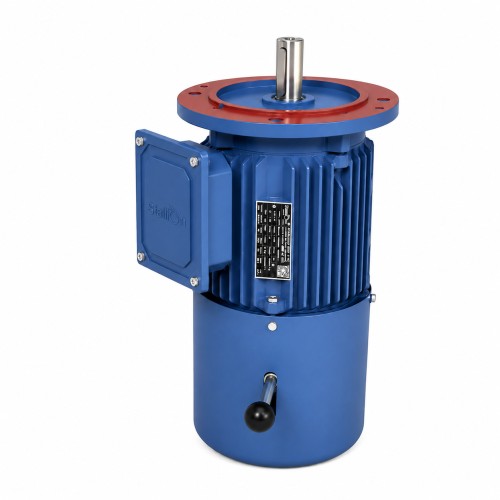

Electromagnetic Brake Motor
Ask For Rate : 9825519264 Or 9825519295
Product Details (2) :
| Minimum Order Quantity | 1 Piece |
| Speed | Upto 3000 RPM |
| Brand | Stallion |
| Power | Up to 120 HP / 90 KW |
| Voltage | 415 V AC for Motor & AC/DC for Brake |
| Phase | Three Phase |
| Mounting | Horizontal & Vertical |
| Mounting Type | Horizontal & Vertical |
| Usage/Application | Industrial |
| Ambient Temperature | 40 to 45 DegreeC |
| Capacity | Upto 120 HP / 90 KW |
| Features | Efficient Performance |
| Color | In Standardized as Graphite Grey is Stallion Brand Color (Customized on request) |
| Number Of Poles | 2,4,6 & 8 |
| Frequency | 50 Hz. +/-5% |
| IP Rating | IP 44 / IP 55 Catagory |
| Frame Size | Up to 280 M |
| Duty | S1 to S8 |
| Finish | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Frame | Upto 280 M |
| Gearbox Diameter | NA |
| Insulation Class | F |
| Length | As Per IS Standard |
| Model Name/Number | STL89 |
| Load Current | As Per IS Standard |
| No Load Speed | Upto 3000 RPM |
| Mass Gearhead | NA |
| Shape | Horizontal & Vertical |
| Maximum Overhung Load | NA |
| Shutter Size | NA |
| Motor Sizes | Upto 90 KW / 120 HP |
| Surface Treatment | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Optimum Operating Voltage Vm | 415 V AC +10% |
| Warranty | As Per Standard Company Policy |
| Weight Capacity | Will varying from product model to product model |
| Shaft Diameter | As Per IS Standard |
| AMC | Available |
| Stroke | NA |
| Unit Sizes | KW / HP |
| Automation Grade | NA |
| Bearing Lubrication | Grease Sealed Bearings |
| Weight | Will varying from product model to product model |
| Bearing Type | ZZ Sealed |
| Noise | 76 to 109 dB |
| Customized | Customized Frame Size on Customer's Requirement |
| Protection Class | IP 44 & IP 55 Class |
| Type | Three Pahse AC Standard Electric Squirrel Cage Induction Motor |
| Cylinder | NA |
| Size | Upto 280 M |
| Design Type | As Per IS Standard |
| Axial Load | NA |
| Diameter Mm | NA |
| Dielectric Strength | As Per IS Standard |
| Ratio | NA |
| Discharge In Litre Per Hour | NA |
| Output Torque | As Per IS Standard |
| Discharge Outlet Size | NA |
| Motor Type | Three Pahse AC Standard Electric Squirrel Cage Induction Motor |
| Output Power | Upto 90 KW |
| Finishing | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Fluid Temperature Range | NA |
| Head | NA |
| Installation After Sales Service | Self, Installation Engineers are not needed |
| Installation Services Available | Yes, As per Customer's Requirement |
| Ip Degree Of Protection | IP 44 & IP 55 |
| Lead Wires | NA |
| Material | Electric |
| Max Flow Rate | NA |
| Maximum Discharge Flow | NA |
| Maximum Head | NA |
| Measurement Mm | NA |
| Orientation | As per Customer's Requirement |
| Portable | NA |
| Pressure | NA |
| Pump Type | NA |
| Range Kilowatt | Upto 90 KW |
| Sealing | Oil Seal in Geared Application |
| Source | NA |
| Step Angle Degree Celsius | NA |
| Temperature Degree Celsius | As per IS Standard |
| Terminal Box Location | TOP,RHS,TOP & LHS,RHS & LHS,LHS & TOP |
| Thermal Class Degree Celsius | 130 DegreeC |
| Thread B | NA |
| Tool Interface | NA |
| Torque Nanometer | NA |
| Weight Gm | NA |
| Winding | Modified Polyster Enamel Cover Copper |
| Dimensions | As Per IS Standard |
| Atmosphere | NA |
| Output Range | Upto 120 HP / 90 KW |
| Altitude | Upto 1000m |
| Centrifugal Force | NA |
| Combined Variation | +/-10% |
Electromagnetic Brake Motor
View More
Brake Gear Motor
Ask For Rate : 9825519264 Or 9825519295
Product Details (1) :
| Minimum Order Quantity | 1 Piece |
| Power | Upto 90 kW |
| Brand | Stallion |
| Phase | Three Phase |
| Speed | Upto 3000 RPM |
| Mounting | Horizontal & Vertical |
| Voltage | 415 V AC for Motor & AC/DC for Brake |
| Mounting Type | Horizontal & Vertical |
| Ambient Temperature | 40 to 45 DegreeC |
| Usage/Application | Hoisting, Lifting, Travelling & Other All Type Of Industries |
| Capacity | Upto 120 HP / 90 KW |
| Number Of Poles | 2, 4, 6 & 8 |
| Frequency | 50 Hz. +/-5% |
| IP Rating | IP 44 / IP 55 Catagory |
| Features | Efficient Performance |
| Finish | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Color | In Standardized as Graphite Grey is Stallion Brand Color (Customized on request) |
| Frame Size | Up to 280 M |
| Gearbox Diameter | NA |
| Insulation Class | F |
| Model Name/Number | STL91 |
| Load Current | As Per IS Standard |
| No Load Speed | Upto 3000 RPM |
| Mass Gearhead | NA |
| Shape | Horizontal & Vertical |
| Maximum Overhung Load | NA |
| Shutter Size | NA |
| Size | Up to 280 M |
| Motor Sizes | Upto 90 KW / 120 HP |
| Surface Treatment | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Warranty | As Per Standard Company Policy |
| Optimum Operating Voltage Vm | 415 V AC +10% |
| Weight Capacity | Will varying from product model to product model |
| Shaft Diameter | As Per IS Standard |
| AMC | Available |
| Unit Sizes | KW / HP |
| Automation Grade | NA |
| Weight | Will varying from product model to product model |
| Bearing Lubrication | Grease Sealed Bearings |
| Bearing Type | ZZ Sealed |
| Noise | 76 to 109 dB |
| Customized | Customized Frame Size on Customer's Requirement |
| Protection Class | IP 44 & IP 55 Class |
| Type | Three Pahse AC Standard Electric Squirrel Cage Induction Motor |
| Cylinder | NA |
| Design Type | As Per IS Standard |
| Diameter Mm | NA |
| Axial Load | NA |
| Dielectric Strength | As Per IS Standard |
| Ratio | NA |
| Discharge In Litre Per Hour | NA |
| Output Torque | As Per IS Standard |
| Discharge Outlet Size | NA |
| Duty | S1 to S8 |
| Output Power | Upto 90 KW |
| Finishing | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Fluid Temperature Range | NA |
| Frame | Upto 280 M |
| Head | NA |
| Installation After Sales Service | Self, Installation Engineers are not needed |
| Installation Services Available | Yes, As per Customer's Requirement |
| Ip Degree Of Protection | IP 44 & IP 55 |
| Lead Wires | NA |
| Length | NA |
| Material | Electric |
| Max Flow Rate | NA |
| Maximum Discharge Flow | NA |
| Maximum Head | NA |
| Measurement Mm | NA |
| Orientation | As per Customer's Requirement |
| Portable | NA |
| Pressure | NA |
| Pump Type | NA |
| Range Kilowatt | Upto 90 KW |
| Sealing | Oil Seal in Geared Application |
| Source | NA |
| Step Angle Degree Celsius | NA |
| Stroke | NA |
| Temperature Degree Celsius | As per IS Standard |
| Terminal Box Location | TOP,RHS,TOP & LHS,RHS & LHS,LHS & TOP |
| Thermal Class Degree Celsius | 130 DegreeC |
| Thread B | NA |
| Tool Interface | NA |
| Torque Nanometer | NA |
| Weight Gm | NA |
| Winding | Modified Polyster Enamel Cover Copper |
| Dimensions | As Per IS Standard |
| Motor Type | Three Pahse AC Standard Electric Squirrel Cage Induction Motor |
| Atmosphere | NA |
| Output Range | Upto 120 HP / 90 KW |
| Altitude | Upto 1000m |
| Centrifugal Force | NA |
| Combined Variation | +/-10% |
Brake Gear Motor
View More
AC Brake Motor
Ask For Rate : 9825519264 Or 9825519295
Product Details (3) :
| Minimum Order Quantity | 1 Piece |
| Power | Upto 90 kW |
| Brand | Stallion |
| Phase | Three Phase |
| Speed | Upto 3000 RPM |
| Voltage | 415 V AC for Motor & 415 OR 230 OR 220 V AC for Brake |
| Mounting Type | Horizontal & Vertical |
| Ambient Temperature | 40 to 45 DegreeC |
| Usage/Application | Hoisting, Lifting, Travelling & Other All Type Of Industries |
| Capacity | Upto 120 HP / 90 KW |
| Number Of Poles | 2, 4, 6 & 8 |
| Frequency | 50 Hz. +/-5% |
| IP Rating | IP 44 / IP 55 Catagory |
| Features | Efficient Performance |
| Color | In Standardized as Graphite Grey is Stallion Brand Color (Customized on request) |
| Frame Size | Up to 280 M |
| Insulation Class | F |
| Model Name/Number | STL85 |
| No Load Speed | Upto 3000 RPM |
| Shape | Horizontal & Vertical |
| Shutter Size | NA |
| Size | Up to 280 M |
| Surface Treatment | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Warranty | As Per Standard Company Policy |
| Weight Capacity | Will varying from product model to product model |
| AMC | Available |
| Automation Grade | NA |
| Bearing Lubrication | Grease Sealed Bearings |
| Bearing Type | ZZ Sealed |
| Customized | Customized Frame Size on Customer's Requirement |
| Cylinder | NA |
| Design Type | As Per IS Standard |
| Diameter Mm | NA |
| Dielectric Strength | As Per IS Standard |
| Discharge In Litre Per Hour | NA |
| Discharge Outlet Size | NA |
| Duty | S1 to S8 |
| Finishing | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Fluid Temperature Range | NA |
| Frame | Upto 280 M |
| Head | NA |
| Installation After Sales Service | Self, Installation Engineers are not needed |
| Installation Services Available | Yes, As per Customer's Requirement |
| Ip Degree Of Protection | IP 44 & IP 55 |
| Lead Wires | NA |
| Length | NA |
| Material | Electric |
| Max Flow Rate | NA |
| Maximum Discharge Flow | NA |
| Maximum Head | NA |
| Measurement Mm | NA |
| Orientation | As per Customer's Requirement |
| Portable | NA |
| Pressure | NA |
| Pump Type | NA |
| Range Kilowatt | Upto 90 KW |
| Sealing | Oil Seal in Geared Application |
| Source | NA |
| Step Angle Degree Celsius | NA |
| Stroke | NA |
| Temperature Degree Celsius | As per IS Standard |
| Terminal Box Location | TOP,RHS,TOP & LHS,RHS & LHS,LHS & TOP |
| Thermal Class Degree Celsius | 130 DegreeC |
| Thread B | NA |
| Tool Interface | NA |
| Torque Nanometer | NA |
| Weight Gm | NA |
| Winding | Modified Polyster Enamel Cover Copper |
| Dimensions | As Per IS Standard |
| Motor Type | Three Pahse AC Standard Electric Squirrel Cage Induction Motor |
| Atmosphere | NA |
| Output Range | Upto 120 HP / 90 KW |
| Altitude | Upto 1000m |
| Centrifugal Force | NA |
| Combined Variation | +/-10% |
| Nominal Current | As Per IS Standard |
| Polarity | NA |
| Starting Current Ratio | Upto 6.5times |
| Protection | IP 44 & IP 55 |
| Relative Humidity | NA |
| Service Factor | NA |
| Temp. Rise | B |
| Working Moments | NA |
| I Deal In | New Only |
| Country of Origin | Made in India |
Stallion :
We are Ahmedabad (Guj.-INDIA) based ISO 9001 : 2015 and CE approved “Manufacturing Company” And Serve in market since 20 Years
We are operate in market with “Stallion” brand
Product :
These “AC Brake Motors” are mainly combination of Brake & Motor, These are inbuilt with AC Brake
This dual functionality motors are widely used in the all type of industries & market, Which is needed brake operation in their operational cycle
Specifically designed for crane operation with robust in frequent starts/stops and reversals continuous with 60 Starts/Hr. to 300 Starts/Hr.
AC Brake Motor
View More
Electric Brake Motor
Ask For Rate : 9825519264 Or 9825519295
Product Details (4) :
| Power | Upto 90 kW |
| Brand | Stallion |
| Phase | Three Phase |
| Type | AC |
| Speed | Upto 3000 RPM |
| Voltage | 415 V AC for Motor & AC/DC for Brake |
| Mounting Type | Horizontal & Vertical |
| Ambient Temperature | 40 to 45 DegreeC |
| Usage/Application | Hoisting,Lifting,Travelling & Other All Type Of Industries |
| Capacity | Upto 120 HP / 90 KW |
| Number Of Poles | 2, 4, 6 & 8 |
| Frequency | 50 Hz. +/-5% |
| IP Rating | IP 44 / IP 55 Catagory |
| Features | Efficient Performance |
| Color | In Standardized as Graphite Grey is Stallion Brand Color (Customized on request) |
| Frame Size | Up to 280 M |
| Insulation Class | F |
| Model Name/Number | STL88 |
| Surface Treatment | Machining,Filing,Finishing,Cleaning,Varnishing,Red Coat Paint,Final Coat of Stallion Paint |
| Warranty | As Per Standard Company Policy |
| Weight Capacity | Will varying from product model to product model |
| AMC | Available |
| Bearing Lubrication | Grease Sealed Bearings |
| Bearing Type | ZZ Sealed |
| Customized | Customized Frame Size on Customer's Requirement |
| Design Type | IS Standard |
| Duty | S1 to S8 |
| Finishing | Machining,Filing,Finishing,Cleaning,Varnishing,Red Coat Paint,Final Coat of Stallion Paint |
| Installation After Sales Service | Self,Installation Engineers are not needed |
| Installation Services Available | Yes,As per Customer's Requirement |
| Ip Degree Of Protection | IP 44 & IP 55 |
| Range Kilowatt | Upto 90 KW |
| Sealing | Oil Seal in Geared Application |
| Temperature Degree Celsius | As per IS Standard |
| Terminal Box Location | TOP,RHS,TOP & LHS,RHS & LHS,LHS & TOP |
| Thermal Class Degree Celsius | 130 DegreeC |
| Winding | Modified Polyster Enamel Cover Copper |
| Motor Type | Three Pahse AC Standard Electric Squirrel Cage Induction Motor |
| Output Range | Upto 120 HP / 90 KW |
| Altitude | Upto 1000m |
| Combined Variation | +/-10% |
| Nominal Current | Standard |
| Starting Current Ratio | Upto 6.5times |
| Temp. Rise | B |
| I Deal In | New Only |
| Country of Origin | Made in India |
Stallion :
We are Ahmedabad (Guj.-INDIA) based ISO 9001 : 2015 and CE approved “Manufacturing Company” And Serve in market since 20 Years, We are operate in market with “Stallion” brand
Product :
These “Electric Brake Motors” are mainly combination of Brake & Motor, These are inbuilt with AC Brake OR DC Brake
This dual functionality motors are widely used in the all type of industries & market, Which is needed brake operation in their operational cycle
Specifically designed for crane operation with robust in frequent starts/stops and reversals continuous with 60 Starts/Hr. to 300 Starts/Hr.
Application :
- Ideally suitable for short time and intermittent duties
- Widely use in Crane & Hoist application including LT & CT as well as Material Handling, Weirs & Sluices, Lift, Auxiliary in Rolling Mills, Etc.
- Uses in all Industries
Frame & Range :
- Frame : 63 to 280 S
- KW/HP Range : 0.18 to 90 KW / 0.25 to 120 HP
Operating Conditions :
- Voltage : 415 V +/- 10% (Provided in 220/230/380/460/525 V on request)
- Frequency : 50 Hz +/- 5%
- Combined Variation : +/- 10%
- AC Brake Supply Voltage : 415 V, 230 V, 220 V
- DC Brake Supply Voltage : 190 V (Mostly Used Voltage), 24 V, 96 V, 105 V, 205 V (Other V provided on request)
Duty :
- Ideally suitable for all types of duties such as...S1 to S8
IS Standards :
- IS : 1231 for Foot & 2223 for Flange Mounting
- IS : 325 for 3-Ph. Ind. Motors Specs.
- IS 12615 : 2018 for Line Operated Three Phase A.C. Motors
- IEC 60034 - 1 for Rotating Electrical Machines – Rating & Performance
Protection :
- Ingress Protection is IP-44
Enclosure :
- Totally Enclosed Fan Cooled
Construction Range :
- Horizontal Mounting as B3, B5, B3 with B5, B6, B7, B8, B14, B3 with B14
- Vertical Mounting as V1, V3, V5, V6, V18, V19
Construction :
- CI, No-Bake Casting, Aluminum
Material :
- Stator Winding:Modified Polyster Enamel Cover Cu.
- Stator Winding Insulation:Class-F with temperature rise as Class-B
- Rotor Winding:Pressure die-cast aluminum
- Stamping:CRNO
- Bearing:ZZ Sealed
- Shaft:EN-8 C40 Steel
Paint :
- Shade:In Standardized Graphite Grey is Stallion Brand Color (Customized on request)
- Type:Auto grade synthetic (Provided Acrylic Base on request)
Key Way & Balancing :
- KeyWay have a precise tolerance work And Rotors are dynamically balanced with a using of our inhouse keyway&balancing line set up
Features :
- Increased air gap between stator and rotor as special designed rotor & Specially designed for Hoisting, CT & LT
- Suitable for All Type of Brake
- Robustly constructed & Durability as high as used material’s applicable grade & quality
- Electrically & Mechanically efficient throughout the motor's life-span with fulfills of IS Standard
- Excellent in Load Inertia Vs Motor Speed
- Less power consumption from IE1 to IE2, IE2 to IE3, Etc.
- Economical models to reduce cost of product
- Can customize for specific hoisting speed as well as combined operation of TEFC & Brake
Request
Callback
Additional Information:
- Item Code: STL88
- Production Capacity: 1500 Piece Per Month
- Delivery Time: As Per Customer Requirement / Ready To Stock
- Packaging Details: As Stallion Standardized PVC Wrapping (Wooden Box / Metal Box / Thermocol-Corrugated Box Are available on request)
Electric Brake Motor
View More
Geared Brake Motor
Ask For Rate : 9825519264 Or 9825519295
Product Details (5) :
| Minimum Order Quantity | 1 Piece |
| Speed | Upto 3000 RPM |
| Brand | Stallion |
| Power | Up to 120 HP / 90 KW |
| Voltage | 415 V AC for Motor & AC/DC for Brake |
| Phase | Three Phase |
| Mounting | Horizontal & Vertical |
| Usage/Application | Industrial |
| Features | Efficient Performance |
| Color | In Standardized as Graphite Grey is Stallion Brand Color (Customized on request) |
| Number Of Poles | 2, 4, 6 & 8 |
| Frame Size | Up to 280 M |
| Duty | S1 to S8 |
| Finish | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Frame | Upto 280 M |
| Gearbox Diameter | NA |
| Length | As Per IS Standard |
| Load Current | As Per IS Standard |
| Mass Gearhead | NA |
| Maximum Overhung Load | NA |
| Motor Sizes | Upto 90 KW / 120 HP |
| Optimum Operating Voltage Vm | 415 V AC +10% |
| Shaft Diameter | As Per IS Standard |
| Stroke | NA |
| Unit Sizes | KW / HP |
| Weight | Will varying from product model to product model |
| Noise | 76 to 109 dB |
| Protection Class | IP 44 & IP 55 Class |
| Type | Three Pahse AC Standard Electric Squirrel Cage Induction Motor |
| Size | Upto 280 M |
| Axial Load | NA |
| Ratio | NA |
| Output Torque | As Per IS Standard |
| Motor Type | Three Pahse AC Standard Electric Squirrel Cage Induction Motor |
| Output Power | Upto 90 KW |
| Country of Origin | Made in India |
Stallion :
We are Ahmedabad (Guj.-INDIA) based ISO 9001 : 2015 and CE approved “Manufacturing Company” And Serve in market since 20 Years
We are operate in market with “Stallion” brand
Product :
These “Geared Brake Motors” are mainly combination of Gear, Brake & Motor, These are inbuilt with Gear Box & AC Brake OR DC Brake
This Triple functionality motors are widely used in the all type of industries & market, Which is needed brake operation in their operational cycle
Specifically designed for crane operation with robust in frequent starts/stops and reversals continuous with 60 Starts/Hr. to 300 Starts/Hr.
Application :
- Ideally suitable for short time and intermittent duties
- Widely use in Crane & Hoist application including LT & CT as well as Material Handling, Weirs & Sluices, Lift, Auxiliary in Rolling Mills, Etc.
Frame & Range :
- Frame : 63 to 280 S
- KW/HP Range : 0.18 to 90 KW / 0.25 to 120 HP
Operating Conditions :
- Voltage : 415 V +/- 10% (Provided in 220/230/380/460/525 V on request)
- Frequency : 50 Hz +/- 5%
- Combined Variation : +/- 10%
- AC Brake Supply Voltage : 415 V, 230 V, 220 V
- DC Brake Supply Voltage : 190 V (Mostly Used Voltage), 24 V, 96 V, 105 V, 205 V (Other V provided on request)
Duty :
- Ideally suitable for all types of duties such as...S1 to S8
IS Standards :
- IS : 1231 for Foot & 2223 for Flange Mounting
- IS : 325 for 3-Ph. Ind. Motors Specs.
- IS 12615 : 2018 for Line Operated Three Phase A.C. Motors
- IEC 60034 - 1 for Rotating Electrical Machines – Rating & Performance
Protection :
- Ingress Protection is IP-44
Enclosure :
- Totally Enclosed Fan Cooled
Construction Range :
- Horizontal Mounting as B3, B5, B3 with B5, B6, B7, B8, B14, B3 with B14
- Vertical Mounting as V1, V3, V5, V6, V18, V19
Construction :
- CI, No-Bake Casting, Aluminum
Material :
- Stator Winding:Modified Polyster Enamel Cover Cu.
- Stator Winding Insulation:Class-F with temperature rise as Class-B
- Rotor Winding:Pressure die-cast aluminum
- Stamping:CRNO
- Bearing:ZZ Sealed
- Shaft:EN-8 C40 Steel
Paint :
- Shade:In Standardized Graphite Grey is Stallion Brand Color (Customized on request)
- Type:Auto grade synthetic (Provided Acrylic Base on request)
Key Way & Balancing :
- KeyWay have a precise tolerance work And Rotors are dynamically balanced with a using of our inhouse keyway&balancing line set up
Features :
- Increased air gap between stator and rotor as special designed rotor & Specially designed for Hoisting, CT & LT
- Suitable for All Type of Brake
- Robustly constructed & Durability as high as used material’s applicable grade & quality
- Electrically & Mechanically efficient throughout the motor's life-span with fulfills of IS Standard
- Excellent in Load Inertia Vs Motor Speed
- Less power consumption from IE1 to IE2, IE2 to IE3, Etc.
- Economical models to reduce cost of product
- Can customize for specific hoisting speed as well as combined operation of TEFC & Brake
Request
Callback
Additional Information:
- Item Code: STL90
- Production Capacity: 1500 Piece Per Month
- Delivery Time: As Per Customer Requirement / Ready To Stock
- Packaging Details: As Stallion Standardized PVC Wrapping (Wooden Box / Metal Box / Thermocol-Corrugated Box Are available on request)
Geared Brake Motor
View More
Industrial Brake Motor
Ask For Rate : 9825519264 Or 9825519295
Product Details (6) :
| Minimum Order Quantity | 1 Piece |
| Power | Upto 90 kW |
| Brand | Stallion |
| Phase | Three Phase |
| Speed | Upto 3000 RPM |
| Voltage | 415 V AC for Motor & AC/DC for Brake |
| Mounting Type | Horizontal & Vertical |
| Ambient Temperature | 40 to 45 DegreeC |
| Usage/Application | Hoisting,Lifting,Travelling & Other All Type Of Industries |
| Capacity | Upto 120 HP |
| Number Of Poles | 2, 4, 6 & 8 |
| Frequency | 50 Hz. +/-5% |
| IP Rating | IP 44 / IP 55 Catagory |
| Features | Efficient Performance |
| Color | In Standardized as Graphite Grey is Stallion Brand Color (Customized on request) |
| Frame Size | Up to 280 M |
| Insulation Class | F |
| Model Name/Number | STL87 |
| No Load Speed | Upto 3000 RPM |
| Shape | Horizontal & Vertical |
| Shutter Size | NA |
| Size | Up to 280 M |
| Surface Treatment | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Warranty | As Per Standard Company Policy |
| Weight Capacity | Will varying from product model to product model |
| AMC | Available |
| Automation Grade | NA |
| Bearing Lubrication | Grease Sealed Bearings |
| Bearing Type | ZZ Sealed |
| Customized | Customized Frame Size on Customer's Requirement |
| Cylinder | NA |
| Design Type | As Per IS Standard |
| Diameter Mm | NA |
| Dielectric Strength | As Per IS Standard |
| Discharge In Litre Per Hour | NA |
| Discharge Outlet Size | NA |
| Duty | S1 to S8 |
| Finishing | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Fluid Temperature Range | NA |
| Frame | Upto 280 M |
| Head | NA |
| Installation After Sales Service | Self, Installation Engineers are not needed |
| Installation Services Available | Yes, As per Customer's Requirement |
| Ip Degree Of Protection | IP 44 & IP 55 |
| Lead Wires | NA |
| Length | NA |
| Material | Electric |
| Max Flow Rate | NA |
| Maximum Discharge Flow | NA |
| Maximum Head | NA |
| Measurement Mm | NA |
| Orientation | As per Customer's Requirement |
| Portable | NA |
| Pressure | NA |
| Pump Type | NA |
| Range Kilowatt | Upto 90 KW |
| Sealing | Oil Seal in Geared Application |
| Source | NA |
| Step Angle Degree Celsius | NA |
| Stroke | NA |
| Temperature Degree Celsius | As per IS Standard |
| Terminal Box Location | TOP,RHS,TOP & LHS,RHS & LHS,LHS & TOP |
| Thermal Class Degree Celsius | 130 DegreeC |
| Thread B | NA |
| Tool Interface | NA |
| Torque Nanometer | NA |
| Weight Gm | NA |
| Winding | Modified Polyster Enamel Cover Copper |
| Dimensions | As Per IS Standard |
| Motor Type | Three Pahse AC Standard Electric Squirrel Cage Induction Motor |
| Atmosphere | NA |
| Output Range | Upto 120 HP / 90 KW |
| Altitude | Upto 1000m |
| Centrifugal Force | NA |
| Combined Variation | +/-10% |
| Nominal Current | As Per IS Standard |
| Polarity | NA |
| Starting Current Ratio | Upto 6.5times |
| Protection | IP 44 & IP 55 |
| Relative Humidity | NA |
| Service Factor | NA |
| Temp. Rise | B |
| Working Moments | NA |
| I Deal In | New Only |
| Country of Origin | Made in India |
Stallion :
We are Ahmedabad (Guj.-INDIA) based ISO 9001 : 2015 and CE approved “Manufacturing Company” And Serve in market since 20 Years, We are operate in market with “Stallion” brand
Product :
These “Industrial Brake Motors” are mainly combination of Brake & Motor, These are inbuilt with AC Brake OR DC Brake
This dual functionality motors are widely used in the all type of industries & market, Which is needed brake operation in their operational cycle
Specifically designed for crane operation with robust in frequent starts/stops and reversals continuous with 60 Starts/Hr. to 300 Starts/Hr.
Application :
- Ideally suitable for short time and intermittent duties
- Widely use in Crane & Hoist application including LT & CT as well as Material Handling, Weirs & Sluices, Lift, Auxiliary in Rolling Mills, Etc.
- Uses in all Industries
Frame & Range :
- Frame : 63 to 280 S
- KW/HP Range : 0.18 to 90 KW / 0.25 to 120 HP
Operating Conditions :
- Voltage : 415 V +/- 10% (Provided in 220/230/380/460/525 V on request)
- Frequency : 50 Hz +/- 5%
- Combined Variation : +/- 10%
- AC Brake Supply Voltage : 415 V, 230 V, 220 V
- DC Brake Supply Voltage : 190 V (Mostly Used Voltage), 24 V, 96 V, 105 V, 205 V (Other V provided on request)
Duty :
- Ideally suitable for all types of duties such as...S1 to S8
IS Standards :
- IS : 1231 for Foot & 2223 for Flange Mounting
- IS : 325 for 3-Ph. Ind. Motors Specs.
- IS 12615 : 2018 for Line Operated Three Phase A.C. Motors
- IEC 60034 - 1 for Rotating Electrical Machines – Rating & Performance
Protection :
- Ingress Protection is IP-44
Enclosure :
- Totally Enclosed Fan Cooled
Construction Range :
- Horizontal Mounting as B3, B5, B3 with B5, B6, B7, B8, B14, B3 with B14
- Vertical Mounting as V1, V3, V5, V6, V18, V19
Construction :
- CI, No-Bake Casting, Aluminum
Material :
- Stator Winding:Modified Polyster Enamel Cover Cu.
- Stator Winding Insulation:Class-F with temperature rise as Class-B
- Rotor Winding:Pressure die-cast aluminum
- Stamping:CRNO
- Bearing:ZZ Sealed
- Shaft:EN-8 C40 Steel
Paint :
- Shade:In Standardized Graphite Grey is Stallion Brand Color (Customized on request)
- Type:Auto grade synthetic (Provided Acrylic Base on request)
Key Way & Balancing :
- KeyWay have a precise tolerance work And Rotors are dynamically balanced with a using of our inhouse keyway&balancing line set up
Features :
- Increased air gap between stator and rotor as special designed rotor & Specially designed for Hoisting, CT & LT
- Suitable for All Type of Brake
- Robustly constructed & Durability as high as used material’s applicable grade & quality
- Electrically & Mechanically efficient throughout the motor's life-span with fulfills of IS Standard
- Excellent in Load Inertia Vs Motor Speed
- Less power consumption from IE1 to IE2, IE2 to IE3, Etc.
- Economical models to reduce cost of product
- Can customize for specific hoisting speed as well as combined operation of TEFC & Brake
Request
Callback
Additional Information:
- Item Code: STL87
- Production Capacity: 1500 Piece Per Month
- Delivery Time: As Per Customer Requirement / Ready To Stock
- Packaging Details: As Stallion Standardized PVC Wrapping (Wooden Box / Metal Box / Thermocol-Corrugated Box Are available on request)
Industrial Brake Motor
View More
DC Brake Motor
Ask For Rate : 9825519264 Or 9825519295
Product Details (7) :
| Minimum Order Quantity | 1 Piece |
| Power | Upto 90 kW |
| Brand | Stallion |
| Phase | Three Phase |
| Speed | Upto 3000 RPM |
| Voltage | 415 V AC for Motor & 190 V DC (Mostly Used Voltage),24 V DC,96 V DC,105 V DC,205 V DC |
| Mounting Type | Foot Mount, Horizontal & Vertical |
| Ambient Temperature | 40 to 45 DegreeC |
| Motor Voltage | 415 V AC for Motor & DC for Brake |
| Capacity | Upto 120 HP / 90 KW |
| Number Of Poles | 2, 4, 6 & 8 |
| IP Rating | IP 44 / IP 55 Catagory |
| Features | Efficient Performance |
| Color | In Standardized as Graphite Grey is Stallion Brand Color (Customized on request) |
| Frame Size | Up to 280 M |
| Insulation Class | F |
| Frequency | 50 Hz. +/-5% |
| Model Name/Number | STL86 |
| No Load Speed | Upto 3000 RPM |
| Usage/Application | All Type of Micro, Small, Medium, Heavy And Large Scale of Industries |
| Shape | Horizontal & Vertical |
| Shutter Size | NA |
| Size | Up to 280 M |
| Surface Treatment | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Warranty | As Per Standard Company Policy |
| Weight Capacity | Will varying from product model to product model |
| AMC | Available |
| Automation Grade | NA |
| Bearing Lubrication | Grease Sealed Bearings |
| Bearing Type | ZZ Sealed |
| Customized | Customized Frame Size on Customer's Requirement |
| Cylinder | NA |
| Design Type | As Per IS Standard |
| Diameter Mm | NA |
| Dielectric Strength | As Per IS Standard |
| Discharge In Litre Per Hour | NA |
| Discharge Outlet Size | NA |
| Duty | S1 to S8 |
| Finishing | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Fluid Temperature Range | NA |
| Frame | Upto 280 M |
| Head | NA |
| Installation After Sales Service | Self, Installation Engineers are not needed |
| Installation Services Available | Yes, As per Customer's Requirement |
| Ip Degree Of Protection | IP 44 & IP 55 |
| Lead Wires | NA |
| Length | NA |
| Material | Electric |
| Max Flow Rate | NA |
| Maximum Discharge Flow | NA |
| Maximum Head | NA |
| Measurement Mm | NA |
| Orientation | As per Customer's Requirement |
| Portable | NA |
| Pressure | NA |
| Pump Type | NA |
| Range Kilowatt | Upto 90 KW |
| Sealing | Oil Seal in Geared Application |
| Source | NA |
| Step Angle Degree Celsius | NA |
| Stroke | NA |
| Temperature Degree Celsius | As per IS Standard |
| Terminal Box Location | TOP,RHS,TOP & LHS,RHS & LHS,LHS & TOP |
| Thermal Class Degree Celsius | 130 DegreeC |
| Thread B | NA |
| Tool Interface | NA |
| Torque Nanometer | NA |
| Weight Gm | NA |
| Winding | Modified Polyster Enamel Cover Copper |
| Dimensions | As Per IS Standard |
| Motor Type | Three Pahse AC Standard Electric Squirrel Cage Induction Motor |
| Atmosphere | NA |
| Output Range | Upto 120 HP / 90 KW |
| Altitude | Upto 1000m |
| Centrifugal Force | NA |
| Combined Variation | +/-10% |
| Nominal Current | As Per IS Standard |
| Polarity | NA |
| Starting Current Ratio | Upto 6.5times |
| Protection | IP 44 & IP 55 |
| Relative Humidity | NA |
| Service Factor | NA |
| Temp. Rise | B |
| Working Moments | NA |
| I Deal In | New Only |
| Country of Origin | Made in India |
Stallion :
We are Ahmedabad (Guj.-INDIA) based ISO 9001 : 2015 and CE approved “Manufacturing Company” And Serve in market since 20 Years
We are operate in market with “Stallion” brand
Product :
These “DC Brake Motors” are mainly combination of Brake & Motor, These are inbuilt with DC Brake
This dual functionality motors are widely used in the all type of industries & market, Which is needed brake operation in their operational cycle
Specifically designed for crane operation with robust in frequent starts/stops and reversals continuous with 60 Starts/Hr. to 300 Starts/Hr.
Application :
- Ideally suitable for short time and intermittent duties
- Widely use in Crane & Hoist application including LT & CT as well as Material Handling, Weirs & Sluices, Lift, Auxiliary in Rolling Mills, Etc.
- All Type of Micro, Small, Medium, Heavy And Large Scale of Industries
Frame & Range :
- Frame : 63 to 280 S
- KW/HP Range : 0.18 to 90 KW / 0.25 to 120 HP
Operating Conditions :
- Voltage : 415 V +/- 10% (Provided in 220/230/380/460/525 V on request)
- Frequency : 50 Hz +/- 5%
- Combined Variation : +/- 10%
- DC Brake Supply Voltage : 190 V (Mostly Used Voltage), 24 V, 96 V, 105 V, 205 V (Other V provided on request)
Duty :
- Ideally suitable for all types of duties such as...S1 to S8
IS Standards :
- IS : 1231 for Foot & 2223 for Flange Mounting
- IS : 325 for 3-Ph. Ind. Motors Specs.
- IS 12615 : 2018 for Line Operated Three Phase A.C. Motors
- IEC 60034 - 1 for Rotating Electrical Machines – Rating & Performance
Protection :
- Ingress Protection is IP-44
Enclosure :
- Totally Enclosed Fan Cooled
Construction Range :
- Horizontal Mounting as B3, B5, B3 with B5, B6, B7, B8, B14, B3 with B14
- Vertical Mounting as V1, V3, V5, V6, V18, V19
Construction :
- CI, No-Bake Casting, Aluminum
Material :
- Stator Winding : Modified Polyster Enamel Cover Cu.
- Stator Winding Insulation : Class-F with temperature rise as Class-B
- Rotor Winding : Pressure die-cast aluminum
- Stamping : CRNO
- Bearing : ZZ Sealed
- Shaft : EN-8 C40 Steel
Paint :
- Shade : In Standardized Graphite Grey is Stallion Brand Color (Customized on request)
- Type : Auto grade synthetic (Provided Acrylic Base on request)
Key Way & Balancing :
- KeyWay have a precise tolerance work And Rotors are dynamically balanced with a using of our inhouse keyway&balancing line set up
Features :
- Increased air gap between stator and rotor as special designed rotor & Specially designed for Hoisting, CT & LT
- Suitable for All Type of Brake
- Robustly constructed & Durability as high as used material’s applicable grade & quality
- Electrically & Mechanically efficient throughout the motor's life-span with fulfills of IS Standard
- Excellent in Load Inertia Vs Motor Speed
- Less power consumption from IE1 to IE2, IE2 to IE3, Etc.
- Economical models to reduce cost of product
- Can customize for specific hoisting speed as well as combined operation of TEFC & Brake
Request
Callback
DC Brake Motor
View More
Brake Motor
Ask For Rate : 9825519264 Or 9825519295
Product Details (8) :
| Minimum Order Quantity | 1 Piece |
| Power | Upto 90 kW |
| Brand | Stallion |
| Voltage | 415 V AC for Motor & AC/DC for Brake |
| Mounting Type | Horizontal & Vertical |
| Ambient Temperature | 40 to 45 DegreeC |
| Usage/Application | Hoisting, Lifting & Other All Type Of Industries |
| Phase | Three Phase |
| Speed | Upto 3000 RPM |
| Speed (Rpm) | Upto 3000 RPM |
| Capacity | Upto 120 HP / 90 KW |
| Number Of Poles | 2, 4, 6 & 8 |
| Power (Watts or HP) | Upto 90 KW / 120 HP |
| Motor Voltage | 415 V AC +/-10% |
| Frequency | 50 Hz. +/-5% |
| IP Rating | IP 44 / IP 55 Catagory |
| Features | Efficient Performance |
| Color | In Standardized as Graphite Grey is Stallion Brand Color (Customized on request) |
| Frame Size | Up to 280 M |
| Insulation Class | F |
| Model Name/Number | STL81 |
| No Load Speed | Upto 3000 RPM |
| Shape | Horizontal & Vertical |
| Shutter Size | NA |
| Size | Up to 280 M |
| Surface Treatment | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Warranty | As Per Standard Company Policy |
| Weight Capacity | Will varying from product model to product model |
| AMC | Available |
| Automation Grade | NA |
| Bearing Lubrication | Grease Sealed Bearings |
| Bearing Type | ZZ Sealed |
| Customized | Customized Frame Size on Customer's Requirement |
| Cylinder | NA |
| Design Type | As Per IS Standard |
| Diameter Mm | NA |
| Dielectric Strength | As Per IS Standard |
| Discharge In Litre Per Hour | NA |
| Discharge Outlet Size | NA |
| Duty | S1 to S8 |
| Finishing | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Fluid Temperature Range | NA |
| Frame | Upto 280 M |
| Head | NA |
| Installation After Sales Service | Self, Installation Engineers are not needed |
| Installation Services Available | Yes, As per Customer's Requirement |
| Ip Degree Of Protection | IP 44 & IP 55 |
| Lead Wires | NA |
| Length | NA |
| Material | Electric |
| Max Flow Rate | NA |
| Maximum Discharge Flow | NA |
| Maximum Head | NA |
| Measurement Mm | NA |
| Orientation | As per Customer's Requirement |
| Portable | NA |
| Pressure | NA |
| Pump Type | NA |
| Range Kilowatt | Upto 90 KW |
| Sealing | Oil Seal in Geared Application |
| Source | NA |
| Step Angle Degree Celsius | NA |
| Stroke | NA |
| Temperature Degree Celsius | As per IS Standard |
| Terminal Box Location | TOP,RHS,TOP & LHS,RHS & LHS,LHS & TOP |
| Thermal Class Degree Celsius | 130 DegreeC |
| Thread B | NA |
| Tool Interface | NA |
| Torque Nanometer | NA |
| Weight Gm | NA |
| Winding | Modified Polyster Enamel Cover Copper |
| Dimensions | As Per IS Standard |
| Motor Type | Three Pahse AC Standard Electric Squirrel Cage Induction Motor |
| Atmosphere | NA |
| Output Range | Upto 120 HP / 90 KW |
| Altitude | Upto 1000m |
| Centrifugal Force | NA |
| Combined Variation | +/-10% |
| Nominal Current | As Per IS Standard |
| Polarity | NA |
| Starting Current Ratio | Upto 6.5times |
| Protection | IP 44 & IP 55 |
| Relative Humidity | NA |
| Service Factor | NA |
| Temp. Rise | B |
| Working Moments | NA |
| I Deal In | New Only |
| Country of Origin | Made in India |
Stallion :
We are Ahmedabad (Guj.-INDIA) based ISO 9001 : 2015 and CE approved “Manufacturing Company” And Serve in market since 20 Years
We are operate in market with “Stallion” brand
Product :
These “Brake Motors” are mainly combination of Brake & Motor, These are inbuilt with AC Brake OR DC Brake
This dual functionality motors are widely used in the all type of industries & market, Which is needed brake operation in their operational cycle
Specifically designed for crane operation with robust in frequent starts/stops and reversals continuous with 60 Starts/Hr. to 300 Starts/Hr.
Application :
- Ideally suitable for short time and intermittent duties
- Widely use in Crane & Hoist application including LT & CT as well as Material Handling, Weirs & Sluices, Lift, Auxiliary in Rolling Mills, Etc.
- Uses in all Industries
Frame & Range :
- Frame : 63 to 280 S
- KW/HP Range : 0.18 to 90 KW / 0.25 to 120 HP
Operating Conditions :
- Voltage : 415 V +/- 10% (Provided in 220/230/380/460/525 V on request)
- Frequency : 50 Hz +/- 5%
- Combined Variation : +/- 10%
- AC Brake Supply Voltage : 415 V, 230 V, 220 V
- DC Brake Supply Voltage : 190 V (Mostly Used Voltage), 24 V, 96 V, 105 V, 205 V (Other provided on request)
Duty :
- Ideally suitable for all types of duties such as...S1 to S8
IS Standards :
- IS : 1231 for Foot & 2223 for Flange Mounting
- IS : 325 for 3-Ph. Ind. Motors Specs.
- IS 12615 : 2018 for Line Operated Three Phase A.C. Motors
- IEC 60034 - 1 for Rotating Electrical Machines – Rating & Performance
Protection :
- Ingress Protection is IP-44
Enclosure :
- Totally Enclosed Fan Cooled
Construction Range :
- Horizontal Mounting as B3, B5, B3 with B5, B6, B7, B8, B14, B3 with B14
- Vertical Mounting as V1, V3, V5, V6, V18, V19
Construction :
- CI, No-Bake Casting, Aluminum
Material :
- Stator Winding:Modified Polyster Enamel Cover Cu.
- Stator Winding Insulation:Class-F with temperature rise as Class-B
- Rotor Winding:Pressure die-cast aluminum
- Stamping:CRNO
- Bearing:ZZ Sealed
- Shaft:EN-8 C40 Steel
Paint :
- Shade:In Standardized Graphite Grey is Stallion Brand Color (Customized on request)
- Type:Auto grade synthetic (Provided Acrylic Base on request)
Key Way & Balancing :
- KeyWay have a precise tolerance work And Rotors are dynamically balanced with a using of our inhouse keyway&balancing line set up
Features :
- Increased air gap between stator and rotor as special designed rotor & Specially designed for Hoisting, CT & LT
- Suitable for All Type of Brake
- Robustly constructed & Durability as high as used material’s applicable grade & quality
- Electrically & Mechanically efficient throughout the motor's life-span with fulfills of IS Standard
- Excellent in Load Inertia Vs Motor Speed
- Less power consumption from IE1 to IE2, IE2 to IE3, Etc.
- Economical models to reduce cost of product
- Can customize for specific hoisting speed as well as combined operation of TEFC & Brake
Request
Callback
Brake Motor
View More
Flange Mount DC Brake Motor
Ask For Rate : 9825519264 Or 9825519295
Product Details (148) :
| Minimum Order Quantity | 1 Piece |
| Power | Upto 90 kW |
| Brand | Stallion |
| Phase | Three Phase |
| Speed | Upto 3000 RPM |
| Voltage | 415 V AC for Motor & 190 V DC (Mostly Used Voltage),24 V DC,96 V DC,105 V DC,205 V DC |
| Mounting Type | Flange Mount, Horizontal & Vertical |
| Ambient Temperature | 40 to 45 DegreeC |
| Motor Voltage | 415 V AC for Motor & DC for Brake |
| Capacity | Upto 120 HP / 90 KW |
| Number Of Poles | 2, 4, 6 & 8 |
| IP Rating | IP 44 / IP 55 Catagory |
| Features | Efficient Performance |
| Color | In Standardized as Graphite Grey is Stallion Brand Color (Customized on request) |
| Frame Size | Up to 280 M |
| Insulation Class | F |
| Frequency | 50 Hz. +/-5% |
| Model Name/Number | STL86 |
| No Load Speed | Upto 3000 RPM |
| Usage/Application | All Type of Micro, Small, Medium, Heavy And Large Scale of Industries |
| Shape | Horizontal & Vertical |
| Shutter Size | NA |
| Size | Up to 280 M |
| Surface Treatment | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Warranty | As Per Standard Company Policy |
| Weight Capacity | Will varying from product model to product model |
| AMC | Available |
| Automation Grade | NA |
| Bearing Lubrication | Grease Sealed Bearings |
| Bearing Type | ZZ Sealed |
| Customized | Customized Frame Size on Customer's Requirement |
| Cylinder | NA |
| Design Type | As Per IS Standard |
| Diameter Mm | NA |
| Dielectric Strength | As Per IS Standard |
| Discharge In Litre Per Hour | NA |
| Discharge Outlet Size | NA |
| Duty | S1 to S8 |
| Finishing | Machining, Filing, Finishing, Cleaning, Varnishing, Red Coat Paint, Final Coat of Stallion Paint |
| Fluid Temperature Range | NA |
| Frame | Upto 280 M |
| Head | NA |
| Installation After Sales Service | Self, Installation Engineers are not needed |
| Installation Services Available | Yes, As per Customer's Requirement |
| Ip Degree Of Protection | IP 44 & IP 55 |
| Lead Wires | NA |
| Length | NA |
| Material | Electric |
| Max Flow Rate | NA |
| Maximum Discharge Flow | NA |
| Maximum Head | NA |
| Measurement Mm | NA |
| Orientation | As per Customer's Requirement |
| Portable | NA |
| Pressure | NA |
| Pump Type | NA |
| Range Kilowatt | Upto 90 KW |
| Sealing | Oil Seal in Geared Application |
| Source | NA |
| Step Angle Degree Celsius | NA |
| Stroke | NA |
| Temperature Degree Celsius | As per IS Standard |
| Terminal Box Location | TOP,RHS,TOP & LHS,RHS & LHS,LHS & TOP |
| Thermal Class Degree Celsius | 130 DegreeC |
| Thread B | NA |
| Tool Interface | NA |
| Torque Nanometer | NA |
| Weight Gm | NA |
| Winding | Modified Polyster Enamel Cover Copper |
| Dimensions | As Per IS Standard |
| Motor Type | Three Pahse AC Standard Electric Squirrel Cage Induction Motor |
| Atmosphere | NA |
| Output Range | Upto 120 HP / 90 KW |
| Altitude | Upto 1000m |
| Centrifugal Force | NA |
| Combined Variation | +/-10% |
| Nominal Current | As Per IS Standard |
| Polarity | NA |
| Starting Current Ratio | Upto 6.5times |
| Protection | IP 44 & IP 55 |
| Relative Humidity | NA |
| Service Factor | NA |
| Temp. Rise | B |
| Working Moments | NA |
| I Deal In | New Only |
| Country of Origin | Made in India |
Stallion :
We are Ahmedabad (Guj.-INDIA) based ISO 9001 : 2015 and CE approved “Manufacturing Company” And Serve in market since 20 Years
We are operate in market with “Stallion” brand
Product :
These “DC Brake Motors” are mainly combination of Brake & Motor, These are inbuilt with DC Brake
This dual functionality motors are widely used in the all type of industries & market, Which is needed brake operation in their operational cycle
Specifically designed for crane operation with robust in frequent starts/stops and reversals continuous with 60 Starts/Hr. to 300 Starts/Hr.
Application :
- Ideally suitable for short time and intermittent duties
- Widely use in Crane & Hoist application including LT & CT as well as Material Handling, Weirs & Sluices, Lift, Auxiliary in Rolling Mills, Etc.
- All Type of Micro, Small, Medium, Heavy And Large Scale of Industries
Frame & Range :
- Frame : 63 to 280 S
- KW/HP Range : 0.18 to 90 KW / 0.25 to 120 HP
Operating Conditions :
- Voltage : 415 V +/- 10% (Provided in 220/230/380/460/525 V on request)
- Frequency : 50 Hz +/- 5%
- Combined Variation : +/- 10%
- DC Brake Supply Voltage : 190 V (Mostly Used Voltage), 24 V, 96 V, 105 V, 205 V (Other V provided on request)
Duty :
- Ideally suitable for all types of duties such as...S1 to S8
IS Standards :
- IS : 1231 for Foot & 2223 for Flange Mounting
- IS : 325 for 3-Ph. Ind. Motors Specs.
- IS 12615 : 2018 for Line Operated Three Phase A.C. Motors
- IEC 60034 - 1 for Rotating Electrical Machines – Rating & Performance
Protection :
- Ingress Protection is IP-44
Enclosure :
- Totally Enclosed Fan Cooled
Construction Range :
- Horizontal Mounting as B3, B5, B3 with B5, B6, B7, B8, B14, B3 with B14
- Vertical Mounting as V1, V3, V5, V6, V18, V19
Construction :
- CI, No-Bake Casting, Aluminum
Material :
- Stator Winding : Modified Polyster Enamel Cover Cu.
- Stator Winding Insulation : Class-F with temperature rise as Class-B
- Rotor Winding : Pressure die-cast aluminum
- Stamping : CRNO
- Bearing : ZZ Sealed
- Shaft : EN-8 C40 Steel
Paint :
- Shade : In Standardized Graphite Grey is Stallion Brand Color (Customized on request)
- Type : Auto grade synthetic (Provided Acrylic Base on request)
Key Way & Balancing :
- KeyWay have a precise tolerance work And Rotors are dynamically balanced with a using of our inhouse keyway&balancing line set up
Features :
- Increased air gap between stator and rotor as special designed rotor & Specially designed for Hoisting, CT & LT
- Suitable for All Type of Brake
- Robustly constructed & Durability as high as used material’s applicable grade & quality
- Electrically & Mechanically efficient throughout the motor's life-span with fulfills of IS Standard
- Excellent in Load Inertia Vs Motor Speed
- Less power consumption from IE1 to IE2, IE2 to IE3, Etc.
- Economical models to reduce cost of product
- Can customize for specific hoisting speed as well as combined operation of TEFC & Brake
Request
Callback
Flange Mount DC Brake Motor
View More
Our product range includes a wide range of brake gear motor, electromagnetic brake motor, ac brake motor, electric brake motor, geared brake motor and industrial brake motor.
Need Help? Chat with us
Start a Conversation
Hi! Click one of our member below to chat on Whatsapp
The team typically replies in a few minutes.
